How to Set Up and Calibrate a Mold Temperature Controller (MTC) Step by Step

Proper setup and calibration of a mold temperature controller (MTC) is essential to ensure consistent product quality, efficient production cycles, and extended equipment life. Whether you are using a water mold temperature controller for moderate temperatures or an oil mold temperature controller for high-temperature applications, following a systematic approach is key to achieving optimal performance.

Step 1: Pre-Installation Checks

Before installing the mold temperature controller (MTC), confirm the following:

1.Ensure the electrical supply matches the specifications of the controller.

2.Verify that the cooling or heating medium (water or oil) is clean and properly filtered.

3.Check that all hoses, valves, and connectors are free from debris or damage.

4.Confirm that the mold and mold temperatuer controller(MTC) placement allow for easy access for maintenance and monitoring.

Step 2: Installation of the MTC

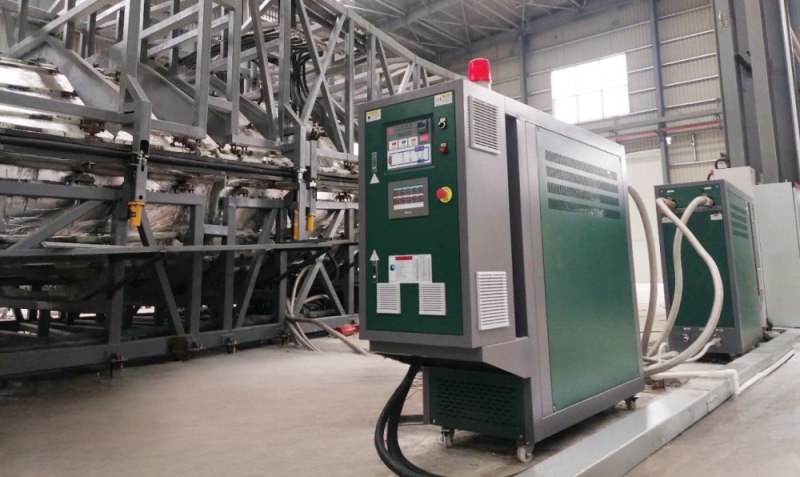

1.Position the mold temperatuer controller(MTC) close to the mold but maintain safe distances from heat sources or potential obstructions.

2.Connect the inlet and outlet hoses securely to the mold. Ensure there are no leaks and that the flow direction matches the MTC’s design.

For detailed installation guidance, refer to:

Installation Steps Of Water Mold Temperature Controller Machine

Installation Steps Of Oil Mold Temperature Controller Machine

3.Check that flow rates and pressures are within the recommended range for your MTC type.

Step 3: Initial Power-Up and Heating

1.Turn on the mold temperatuer controller(MTC) and start the circulation pump.

2.Gradually set the target mold temperature according to the material specifications.

3.Observe the system for any abnormal noises, leaks, or fluctuations in flow or temperature.

For proper start-up and shutdown procedures, see: How to Start and Stop a Mold Temperature Controller Correctly?

Step 4: Calibration Procedure

1.Calibration ensures that the mold temperatuer controller(MTC) delivers precise temperature control:

2.Use a calibrated thermocouple to measure mold surface temperature at multiple points.

3.Compare the readings to the mold temperatuer controller(MTC) display and adjust the controller if deviations exceed the recommended tolerance (usually ±1°C).

4.Check the PID (Proportional-Integral-Derivative) settings and fine-tune them to minimize overshoot and oscillations.

For complex molds, consider mapping multiple points to ensure uniform temperature distribution.

Step 5: Safety and Final Checks

1.Test all safety features, including over-temperature protection, low liquid level alarms, and pressure relief mechanisms.

2.Confirm that circulation is stable and that temperature readings remain consistent during extended operation.

3.Document the initial setup and calibration parameters for future reference and maintenance.

Key FAQs About Mold Temperature Controllers (MTC)

Q1: How often should a mold temperature controller be calibrated?

Calibration is recommended at least once every six months, or more frequently for high-precision applications.

Q2: Can one MTC be used for both water and oil systems?

No. MTCs are designed for specific heat transfer media. Use a water mold temperature controller for water-based systems and an oil mold temperature controller for high-temperature oil applications.

Q3: What is the ideal PID setting for a new mold?

PID settings vary by mold material, size, and process requirements. Start with manufacturer defaults and fine-tune during initial production trials.

Q4: How can I prevent temperature fluctuations during operation?

Ensure stable circulation, clean medium, correct flow rates, and precise PID tuning. Regular maintenance reduces unexpected fluctuations.

Q5: Is it necessary to monitor multiple points on large molds?

Yes. Measuring temperature at multiple points ensures uniform heating and prevents hot or cold spots that can affect product quality.

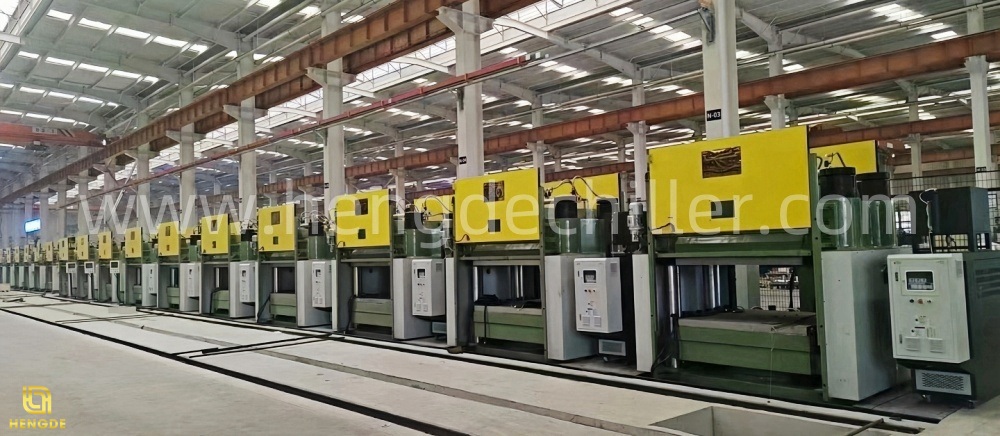

Why Manufacturers Rely on Nanjing Hengde MTCs

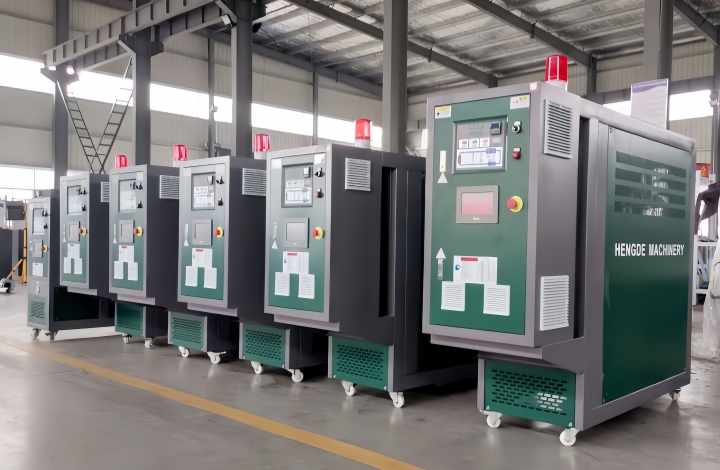

When precision, stability, and efficiency matter, manufacturers turn to Nanjing Hengde mold temperature controllers (MTC). Our water mold temperature controllers and oil mold temperature controllers are engineered to deliver accurate, uniform temperature control across a wide range of molds and production conditions.

Leveraging years of experience supplying MTCs to high-temperature regions such as Saudi Arabia, UAE, Qatar, Kuwait, and Oman, Hengde has built a reputation for reliability in the most demanding industrial environments. By integrating Hengde MTCs into your production, you benefit from reduced process variations, higher product quality, and smoother operation — making your manufacturing process more efficient and predictable.
